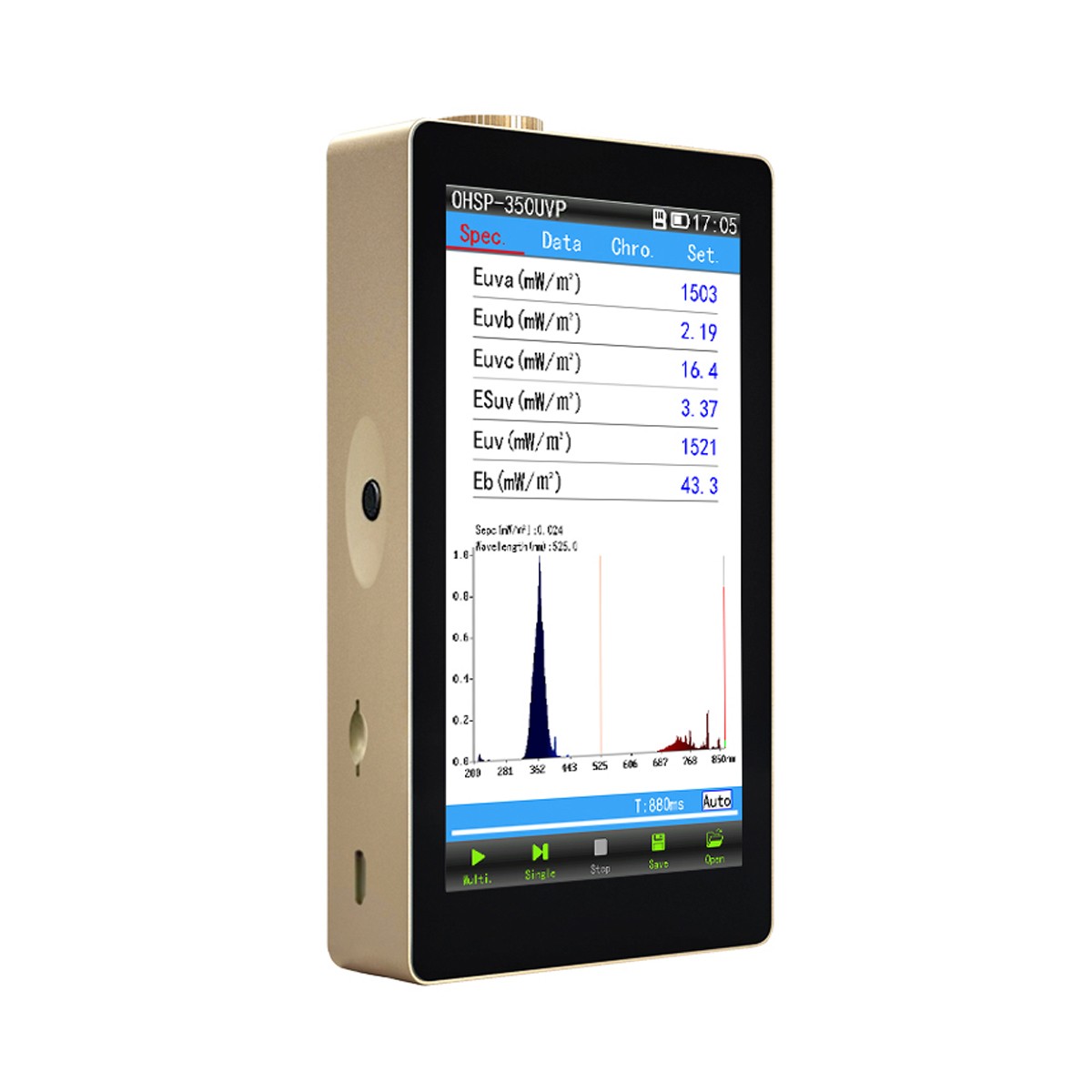

OHSP350UVP Spectrometer Plant Light Analyzer (230-850nm)

OHSP350UVP Spectrometer Plant Light Analyzer (230-850nm)
12244 Visit(s)
UV spectral irradiance meter ,use a UV CCD and UV processing optical path.Used to measure relative the spectral power distribution ,  UVA  (315 nm -400 nm), UVB  (280 nm-315 nm),UVC  (230 nm-280 nm) of UV light source.It is widely used inUV light source, disinfection, sterilization
Excl. VAT: $3000
Contact
HPCS300P Mini Spectrometer（Grow Light Version）
  • Product Details

    •


      一、Test parameters

      Ultraviolet irradiance

      (uW/cm2/nm)

      		Illuminance E(lx)
      		 PPFD, PAR..etc.
      		 Half width (nm)

      Ultraviolet irradiance

      UVA(uW/cm2)

      		CCT (K)
      		 S/P
      		 Dominant wave(nm）

      Ultraviolet irradiance

      UVB(uW/cm2)

      		Candle Light E  (fc)
      		 Spectral distribution Purity（%）

      Ultraviolet irradiance

      UVC(uW/cm2)

      		CRI Ra
      		 Irradiance Ee(W/m2)
      		 OHSP350 Other parameters

      二、Application



      三、Model

      Model Version Wavelength Range Function Description Link
      OHSP350 Essence 380-780nm Base parameters Details click
      OHSP350A Luminous Flux 380-780nm Need to Match Integrating Sphere Details click
      OHSP350B Blue Light 380-780nm Base+Blue Light Details click
      OHSP350BF Blue Flicker 380-780nm Base+Blue Light+Flicker Parameters Details click
      OHSP350C Economical 380-780nm No software Details click
      OHSP350F Flicker 380-780nm Base+Flicker Details click
      OHSP350FA Flash Lamp 380-780nm Base+Flash Parameters Details click
      OHSP350I Industry 380-780nm I / O control, 485 interface, open software interface Details click
      OHSP350L Luminance 380-780nm Luminance(unit cd/m2)parameters Details click
      OHSP350P Grow Light 350-800nm Base+Grow Light parameters Details click
      OHSP350S Flagship 350-950nm Base+Grow Light parameters +TM-30 Parameters Details click
      OHSP350SF Full Function 350-950nm Base+Plant Light parameters +TM-30 Parameters +Flicker Parameters+Blue Light Details click
      OHSP350UV UV 230-850nm Base+UV Irradiation Parameters Details click
      OHSP350UVS UV Update 200-450nm UVA,UVB,UVC Irradiance, 1nm FWHM Details click
      OHSP350Z Many Function 380-780nm Illuminance, Luminance, Luminous Flux, Intensity Details click
