HPL-200 Light meter Phone APP Bluetooth Connection

HPL-200 Wireless Luxmeter

14096 Visit(s)

Hpl-200 series wireless illuminometer is a national first-class precision professional illuminometer, which conforms to GB / T 5700-2008 standard. The utility model has the advantages of small size, exquisite appearance, convenient operation, high precision, wide range, low power consumption, etc. It can be used in outdoor lighting such as road, tunnel, bridge and indoor lighting measurement of industry, commerce and home.

Characteristic:

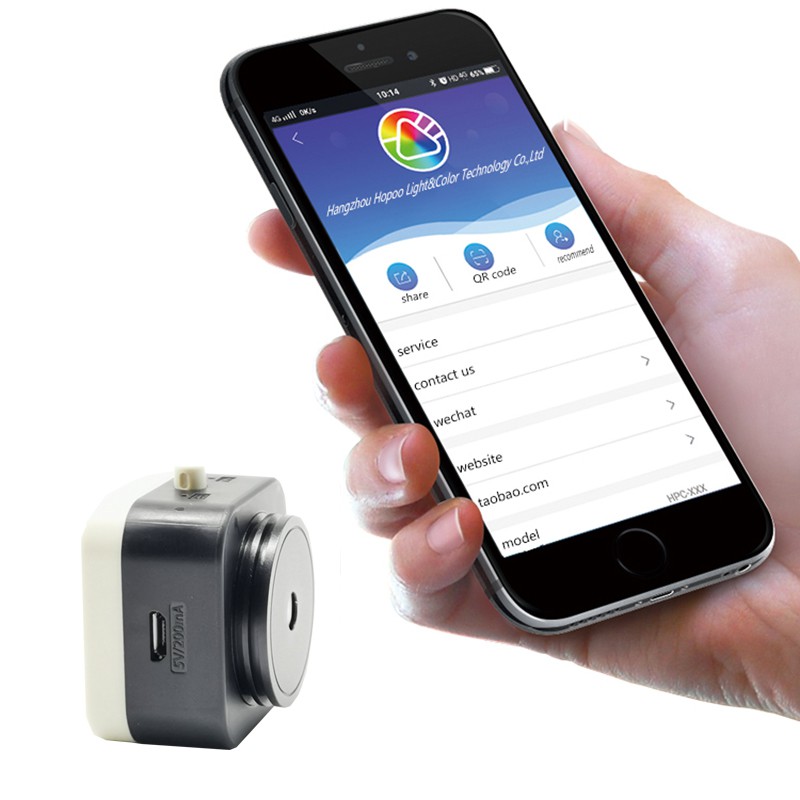

1. Wireless Bluetooth split probe, OLED display host, mobile app;
2. Digital probe, no shift error, high measurement accuracy;
3. High precision V (λ) and cosine correction, reaching the first level of national photometer;
4. Measurement range: 0.1lx -- 100.0klx;

Excl. VAT: $150

Buy Now Contact

OHSP-350F Spectral Flickering Colorimeter

Product Details

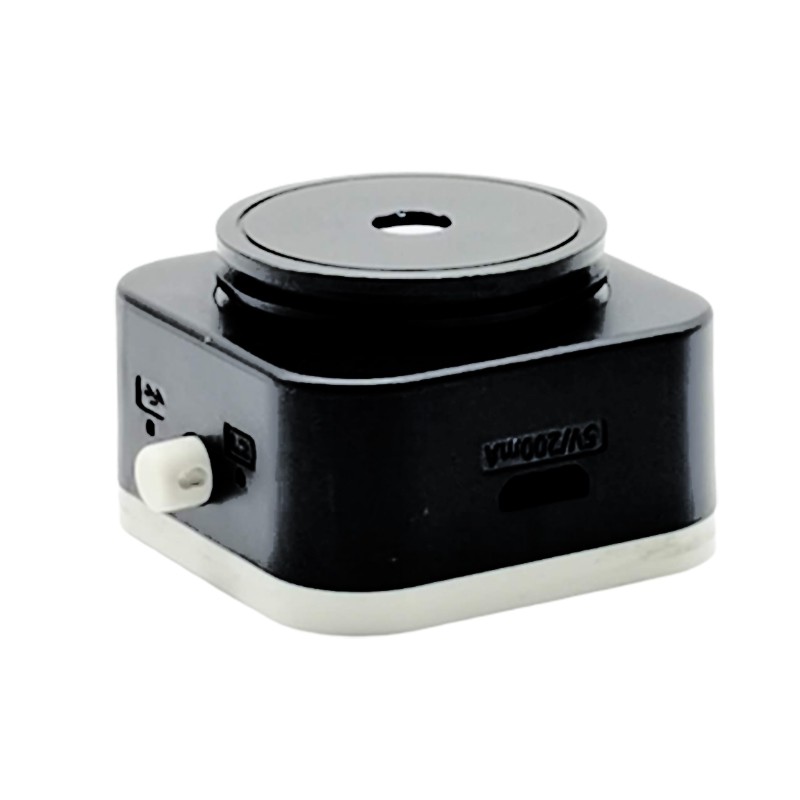

The wireless illuminance meter of hpl-200 system adopts the innovative compact design. It integrates the I / v current and voltage conversion, signal processing, data acquisition, storage and transmission in the traditional illuminance meter probe. It integrates the functions that need to be completed by one instrument into one probe to meet the needs of miniaturization and intelligence.

一 Parameters of HPL200 / 210 / 220 series luxmeter

Name	Specification	Name	Specification
Measurement Range	0.1-200K lx	Cosine Correction Accuracy	<4%(Class 1)
Operate Temp	0~35℃	V(λ) Error	<6%(Class 1)
Storage Temp	-10~40℃	Dimension	383844mm
Power Supply	Lithium Battery	Weight	50g
Material	ABS Plastic	Unit	lx

二 Model list

	Model	Application	Unit		Measurement range	Wavelength range
UVC	HPL200UVC	UV Germicidal lamp Intensity and energy test λp =254nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	245-280nm
	HPL210UVC
	HPL220UVC
	HPL200UV0	UVCLED Germicidal lamp Intensity and energy test λp =275nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	200-400nm
	HPL210UV0
	HPL220UV0
	HPL200UV1	UVCLED Germicidal lamp Intensity and energy test，λp =275nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	200-400nm
	HPL210UV1
	HPL220UV1
UVB	HPL200UVB	Medical skin treatment lamp UV Intensity test，λp =311nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	280-315nm
	HPL210UVB
	HPL220UVB
UVA	HPL200UVA	UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm<	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	350-380nm
	HPL210UVA
	HPL220UVA
	HPL200UV2	UV curing, UVALED Intensity and energy test of surface light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV2
	HPL210UV2
	HPL200UV3	UV curing, UVLED Intensity and energy test of point light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV3
	HPL220UV3

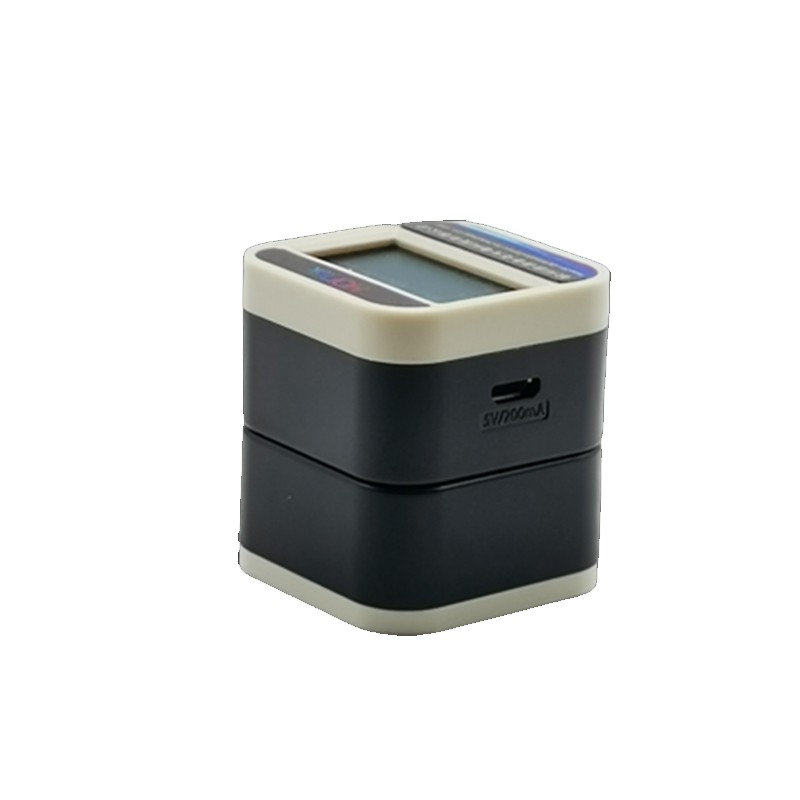

HPL-200 series includes Android mobile app Bluetooth connection； HPL-210 series includes 1.3-inch OLED display, Android mobile app Bluetooth connection; HPL-220series includes separable style main machine，1.3-inch OLED display，Android mobile app Bluetooth connection ;
