HPCS300P Mini Spectrometer
- Product Details
-

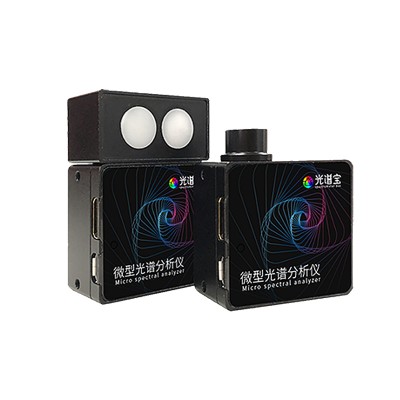

HPCS300P Spectral Illuminance Sensing Module ,adopt advanced technology, used in production line ,achievement On-line analysis of light and color parameters, USB interface to output test result, open Modbus communication, it can use by self-programme, read spectrum data、CCT、Lux、PPFD etc
Models
Model
Wave Range
communication interface
Parameters
HPCS300
380-780nm
USB
Base +USB interface
HPCS300P
350-800nm
USB
Base+plant light parameters
HPCS300I
380-780nm
USB/RS45
IO Control, Rs485
Technical Indicator
Name
Specifications
Name
Specifications
Spectral platform
Long focus CT system
illuminance range
5-200000lx
(FWHM)
4nm
CCT range
1000-100000K
Spectral Resolution
0.5nm
x,yAccuracy
±0.0025
±0.0025
±4%
Sensor
CCD
x,yRepeatability
Sensor array points
1500
Illuminance accuracy
Zeroing mode
Auto zeroing
Wave Accuracy
±1nm
Integration time
50us-20000ms
resolution
16bits,250kSPS
Window size
⌀10mm
size
50*41*22mm
