OHSP-350M Luminous Flux Spectrometer Full Function

OHSP-350M Luminous Flux Spectrometer Full Function
21678 Visit(s)

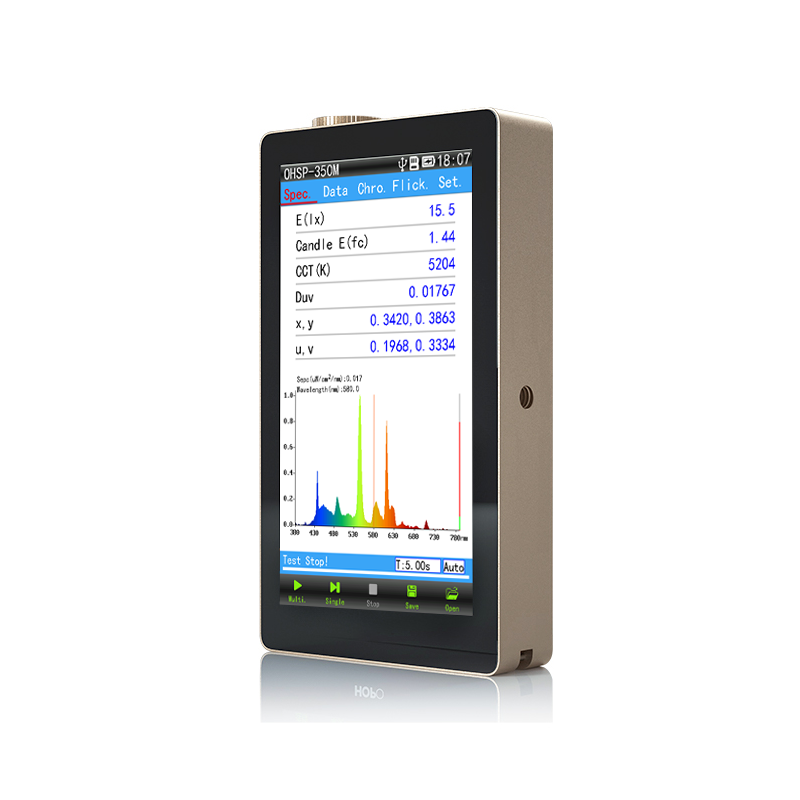

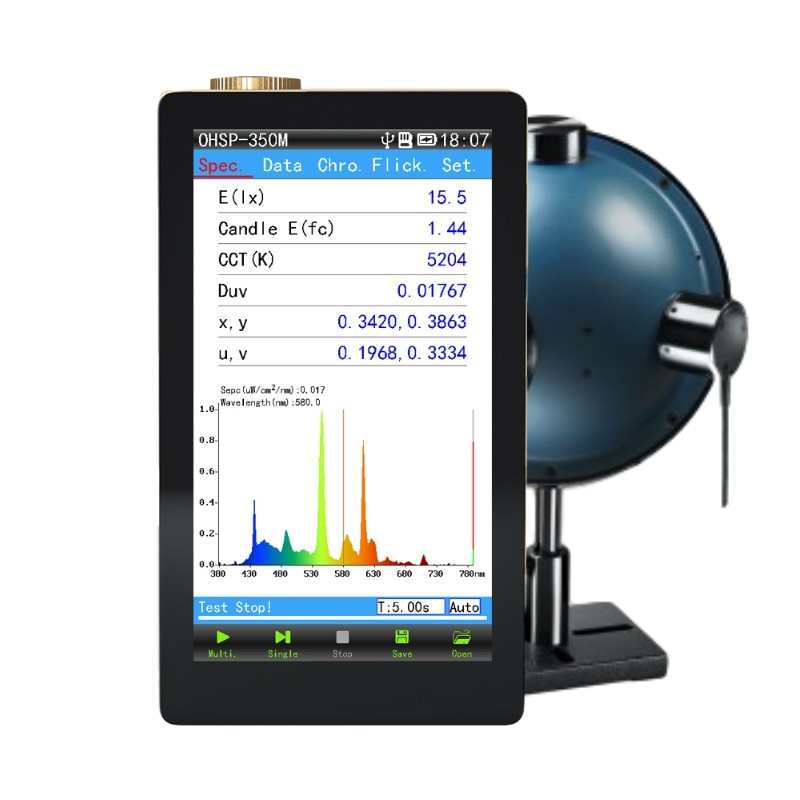

OHSP-350M Spectral Irradiance Colorimeter , it can test Lux and Luminous flux in one, Suitable for measuring the luminous flux of single light source or whole LED lamp. Also good for field test .

Characteristic:
◎ Long Focus System, 2 nm FWHM
◎Patent Auto-Zero&Compensation Tech. Patent number : 201920164191.3
◎Self-developed Operating System, Integration time 20us-10s
◎High Performance CCD Sensor, 3648 dots
◎Electronic shutter Technology, Fast and stable
◎CNC Machining of Aluminum Alloy
◎Large capacity lithium battery
Excl. VAT: $2500
Contact
HPCS6500 Spectroradiometer system
OHSP-350A Luminous Flux (Lumen )Tester Spectrometer
  • Product Details
  • Related Video

    • Parameters


      Luminous flux(lm)

      illuminance E(lx)

      irradiance Ee(W)

      PPF(umol/s)

      CRI Ra

      CCT(K)

      TM-30-2015 Rf

      TM-30-2015 Rg

      Flicker index

      Spectral Distribution

      Modulation depth(%)

      Flicker percent(%)

      Flicker freq (Hz)

      S/P

      Grow light PAR PPFD

      OHSP350 basic model function



      Application


      Model


      Model Version Wavelength Range Function Description Link
      OHSP350 Essence 380-780nm Base parameters Details click
      OHSP350A Luminous Flux 380-780nm Need to Match Integrating Sphere Details click
      OHSP350B Blue Light 380-780nm Base+Blue Light Details click
      OHSP350BF Blue Flicker 380-780nm Base+Blue Light+Flicker Parameters Details click
      OHSP350C Economical 380-780nm No software Details click
      OHSP350F Flicker 380-780nm Base+Flicker Details click
      OHSP350FA Flash Lamp 380-780nm Base+Flash Parameters Details click
      OHSP350I Industry 380-780nm I / O control, 485 interface, open software interface Details click
      OHSP350L Luminance 380-780nm Luminance(unit cd/m2)parameters Details click
      OHSP350P Grow Light 350-800nm Base+Grow Light parameters Details click
      OHSP350S Flagship 350-950nm Base+Grow Light parameters +TM-30 Parameters Details click
      OHSP350SF Full Function 350-950nm Base+Plant Light parameters +TM-30 Parameters +Flicker Parameters+Blue Light Details click
      OHSP350UV UV 230-850nm Base+UV Irradiation Parameters Details click
      OHSP350UVS UV Update 200-450nm UVA,UVB,UVC Irradiance, 1nm FWHM Details click
      OHSP350Z Many Function 380-780nm Illuminance, Luminance, Luminous Flux, Intensity Details click
