HPL220B Blue light irradiance meter

HPL220B Blue light irradiance meter
11500 Visit(s)
HPL220B blue light irradiator is suitable for measuring blue light irradiance in neonatal hyperbilirubinemia. HPL210B blue light irradiator is characterized by digital display, compact and portable, convenient operation, high accuracy and stability.
Excl. VAT: $250
Buy Now Contact

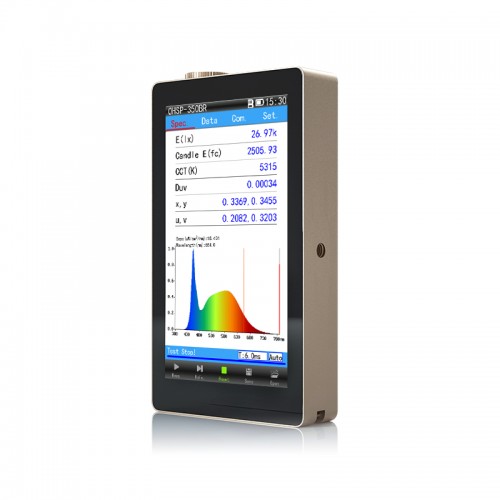

OHSP-350BR Blue light spectrometer
  • Product Details

    • HPL220B blue light irradiance meter is suitable for measuring the blue light irradiance in the phototherapy of neonatal hyperbilirubinemia. HPL210B blue light irradiator is characterized by digital display, compact and portable operation, high accuracy and stability.

      一、HPL220B Parameters of blue light irradiator

      Name

      Specifications

      Name

      Specifications

      Illuminance range

      0.1 lx

      Cosine correction accuracy

      <4%( Class 1 )

      Operate Temp

      0~35℃

      V(λ) Error

      <6%( Class 1 )

      Storage Temp

      -10~40℃

      Size

      38*38*44mm

      Power Supply

      Lithium battery

      Weight

      50g

      Material

      ABS Plastic

      Unit test

      umol/m2/s



      Technical Indicator

      HPL220B

      Spectral response

      400-500nm；λp = 365nm

      Irradiance measurement range

      (0.1~199.9×103)μW/cm2

      Measurement accuracy

      ±8 %

      Sampling rate

      5 times / second

      Test light hole diameter

      ￠6 mm

      Probe size diameter

      ￠30 mm

      Packing size

      20*10*8mm



      三、Model list

         Model

      Name

      Wavelength range

       Measurement range

        HPL200

      Wireless Lux Meter

       380-780nm

       0.1-200,000LX

        HPL200L

      Luminance Meter

       380-780nm

       0.1-200,000CD/M2

        HPL210

      Lux Meter

       380-780nm

       0.1-200,000LX

        HPL220

      Lux Meter

       380-780nm

       0.1-200,000LX

        HPL200P

      Plant lighting PPFD

       400-700nm

       0.01-4000umol/n2/s

        HPL200B

      Blue light irradiance meter

       380-780nm

        0-20000uw/cm2
