OHSP-350C SPECTRAL IRRADIANCE COLCOIMETER

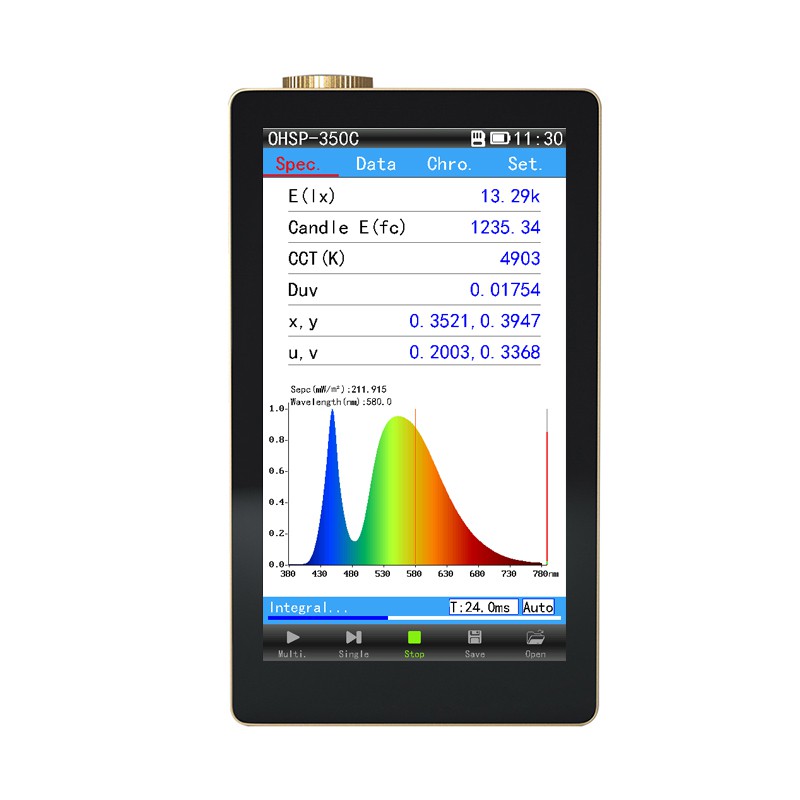

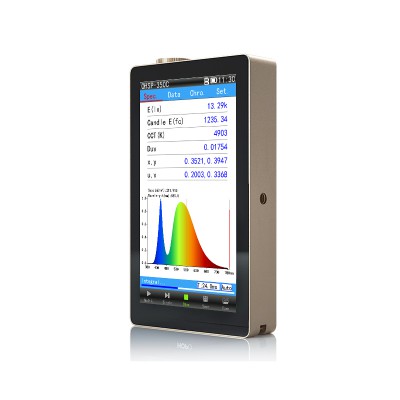

OHSP-350C Spectral Irradiance Colorimeter
18543 Visit(s)
OHSP-350C Spectral irradiance colorimeter,  integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5
inch touch screen, Real-time display of measurement parameters and curves ,use  convenient and fast.not only measure LED
wide spectrum light source ,but also measure CFL、HID narrow spectrum light source.

Characteristic:
◎ Long Focus System, 2 nm FWHM
◎Patent Auto-Zero&Compensation Tech. Patent number : 201920164191.3
◎Self-developed Operating System, Integration time 20us-10s
◎High Performance CCD Sensor, 3648 dots
◎Electronic shutter Technology, Fast and stable
◎CNC Machining of Aluminum Alloy
◎Large capacity lithium battery
Excl. VAT: $650
Contact

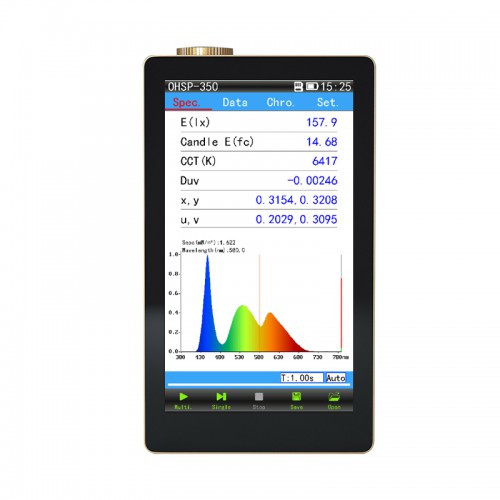

OHSP-350 Portable Spectral irradiance colorimeter
  • Product Details

    • 一、Test parameters

      Name Specifications
      		 Name
      		 Specifications
      Spectral platform Long focus CT system
      		 Illuminance
      		 5-200000lx
      Spectral bandwidth 2nm (FWHM)
      		 CCT range 1000-100000K
      Spectral resol. 0.2nm
      		 x,y Accuracy
      		 ±0.001
      Sensor CCD,3648 dots
      		 x,y Repeatability
      		 ±0.0005
      Integration time 10μs-10s
      		 Illuminance accuracy
      		 ±4%(Class 1)
      Display screen 5' HD IPS LCD
      		 Chromogenic accuracy
      		 ±1.5%
      Resolution 480X854
      		 Wavelength Accuracy
      		 ±0.5nm
      Measure model Single / Continuous
      		 Wavelength Interval
      		 1nm
      Exposure model Auto / Manual
      		 AD Resolution
      		 16bits,250kSPS
      Display model 6 Parameters Sel Spectral Curve
      		 Language/File save
      		 Chinese/English 8GB SD Card
      Output format Excel, jpg
      		 Data Interface
      		 SD Card/USB2.0
      Window size Ø 10mm
      		 Dimensions (L x W x H)
      		 163x81x25.8mm

      二、Application

      三、Model

      Model Version Wavelength Range Function Description Link
      OHSP350 Essence 380-780nm Base parameters Details click
      OHSP350A Luminous Flux 380-780nm Need to Match Integrating Sphere Details click
      OHSP350B Blue Light 380-780nm Base+Blue Light Details click
      OHSP350BF Blue Flicker 380-780nm Base+Blue Light+Flicker Parameters Details click
      OHSP350C Economical 380-780nm No software Details click
      OHSP350F Flicker 380-780nm Base+Flicker Details click
      OHSP350FA Flash Lamp 380-780nm Base+Flash Parameters Details click
      OHSP350I Industry 380-780nm I / O control, 485 interface, open software interface Details click
      OHSP350L Luminance 380-780nm Luminance(unit cd/m2)parameters Details click
      OHSP350P Grow Light 350-800nm Base+Grow Light parameters Details click
      OHSP350S Flagship 350-950nm Base+Grow Light parameters +TM-30 Parameters Details click
      OHSP350SF Full Function 350-950nm Base+Plant Light parameters +TM-30 Parameters +Flicker Parameters+Blue Light Details click
      OHSP350UV UV 230-850nm Base+UV Irradiation Parameters Details click
      OHSP350UVS UV Update 200-450nm UVA,UVB,UVC Irradiance, 1nm FWHM Details click
      OHSP350Z Many Function 380-780nm Illuminance, Luminance, Luminous Flux, Intensity Details click
