HPL220P PPFD METER

HPL220P PPFD METER(APP and display)
9712 Visit(s)
HPL220P Response spectrum range of PPFD is 400nm-700nm，It is applicable to the PPFD measurement of plant canopy in outdoor environment, greenhouse and growing room, as well as the PPFD measurement of reflection or under canopy (transmission) in the same environment.
Excl. VAT: $230
Contact

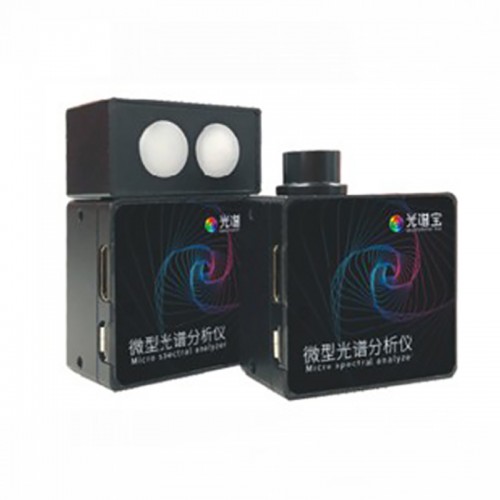

HPCS300P Mini Spectrometer（Grow Light Version）

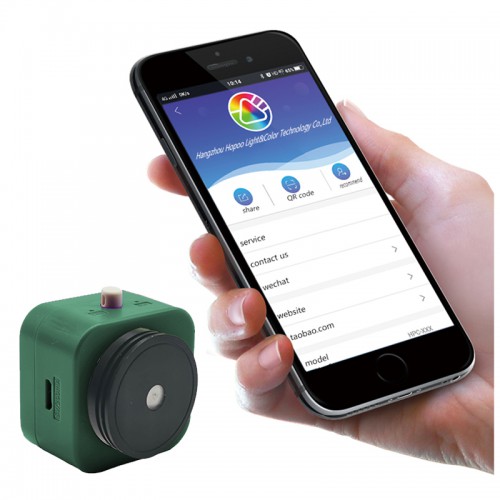

HPL200P Wireless PPFD Meter
  • Product Details

    • To ensure accuracy, each sensor is carefully calibrated under controlled conditions. The sensor integrates silicon photodiodes and customized filters. Typical applications include PPFD / par measurement of plant canopy in outdoor environment, greenhouse and growing room. The measurement results can be viewed on OLED display.

      一、HPL220P Parameters of plant photosynthetic photon flux densitometer

      Name

      Specifications

      Name

      Specifications

      PPFD Measurement Range

      0.01-4000umol/m2/s

      Cosine Correction Accuracy

      <4%(Class 1)

      Operate Temp

      0~35℃

      V(λ) Error

      <6%(Class 1)

      Storage Temp

      -10~40℃

      Dimension

      38*38*44mm

      Power Supply

      Lithium Battery

      Weight(including battery)

      50g

      Material

      ABS Plastic

      Unit

      umol/m2/s



      Technical Indicator

      HPL220PPFD

      Spectral Response

      400-700nm

      Measurement Range

      0.01 - 4000 umol/m2/s

      Resolution

      0.01 umol/m2/s

      Energy Measurement Range

      0 - 9999999 mJ/cm2

      Measurement Accuracy

      ±8%

      Sampling Rate

      5 times/ second

      Unit

      umol/m2/s

      Test Light Hole Diameter

      ￠6 mm

      Probe Size Diameter

      ￠30 mm

      Packing Size

      20*10*8 mm


      二、HPL220P Spectral response curve of plant photosynthetic photon flux densitometer


      Model Selection Table

      Name

      Model

      Function Description

      Unit

      Range

      Wave Range

      Photosynthetic photon flux densitometer

      HPL200P

      Plant photosynthetic photon flux density PPFD and DLA test

      umol/m2/s、 umol/cm2/s

      0.01-4,000 umol/m2/s

      400-700 nm

      HPL210P

      HPL220P

      Photosynthetic effective radiometer

      HPL200PAR

      Par measurement of photosynthetic effective radiation

      uW/cm2、W/m2

      0.1-200,000 uW/cm2

      400-700nm

      HPL210PAR

      HPL220PAR
