OHSP-350I Spectral Irradiance Colorimeter
OHSP-350I Spectrometer Colorimeter (Industrial Version )
12271 Visit(s)

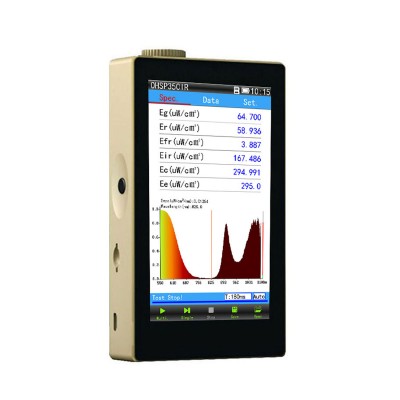

OHSP350I Spectral Irradiance Colorimeter, used for on-line test of industrial .
Features:
◎ 0.2nm spectral resolution,2nm bandwidth;
◎ Patented automatic zero calibration and compensation technology, patent number: 201920164191.3;
◎ Electronic shutter technology, integration time 20us-10s;
◎ High performance 3648 point line Chen CCD sensor;
◎ Independent research and development of dedicated operating system, fast and stable;
◎ The whole machine is fully carved and processed with aluminum alloy;
◎ 4000mA large-capacity battery, 24 hours long test usage time
Features:
◎ 0.2nm spectral resolution,2nm bandwidth;
◎ Patented automatic zero calibration and compensation technology, patent number: 201920164191.3;
◎ Electronic shutter technology, integration time 20us-10s;
◎ High performance 3648 point line Chen CCD sensor;
◎ Independent research and development of dedicated operating system, fast and stable;
◎ The whole machine is fully carved and processed with aluminum alloy;
◎ 4000mA large-capacity battery, 24 hours long test usage time
Excl. VAT: $1600
- Product Details
-
OHSP350I Spectral Irradiance Colorimeter, used for on-line test of industrial .It is
equipped with RS485 communication interface, supports ModBus protocol, and can communicate with PLC；Open USB communication protocol, support self-programming; The upper and lower limit alarm can be set to output OK and NG signals.
Meas parameters Wave range:380-780nm
CCT (K)
illuminance(lx)
S/P
Dominant(nm）
Coordinate x,y
Candle light(fc)
Spectral Distribution
Purity%）
Coordinate u,v
CRI(Ra)
IrradianceEe(W/m2)
OHSP350 basic parameters

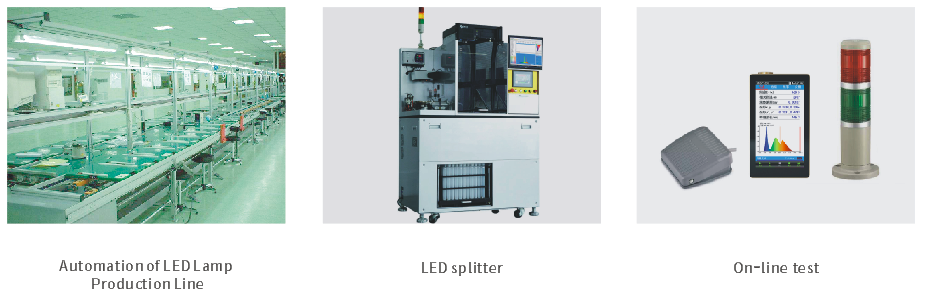

Application
Model OHSP350 I Industry Version Wavelength range 380nm ~780nm
Light Splitting Mode long focal cross section
Sensor High precision CCD
Spectral Bandwidth (FWHM) 2nm
Spectral Resolution 0.2nm X, Y repetitive ±0.0005
Wavelength Accuracy + 0.5nm
Illuminantion Accuracy (±4% Reading +1 Digital）
Lighting Area Ф10mm
Integrating Time 50μs～10000ms
Chromaticity Coordinate Accuracy
±0.0025.
CCT Range
1,000K~ 100,000K
Stray Light
≤0.3%
