HPL200P PPFD Meter

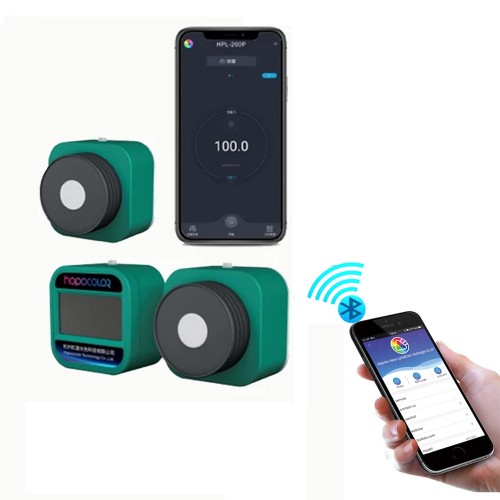

HPL200P Wireless PPFD Meter
11108 Visit(s)
HPL200P Response spectrum range of PPFD is 400nm-700nm，It is applicable to the PPFD measurement of plant canopy in outdoor environment, greenhouse and growing room, as well as the PPFD measurement of reflection or under canopy (transmission) in the same environment. HPL220P including OLED display and Bluetooth test software.
Characteristic:
1. Wireless Bluetooth split probe, OLED display host, mobile app;
2. Digital probe, no shift error, high measurement accuracy;
3. Spectral response: 400nm - 700nm;
4. Range: 0.01 - 4000 umol/ cm2/ s;
Excl. VAT: $230
Buy Now Contact
HPL220P PPFD METER

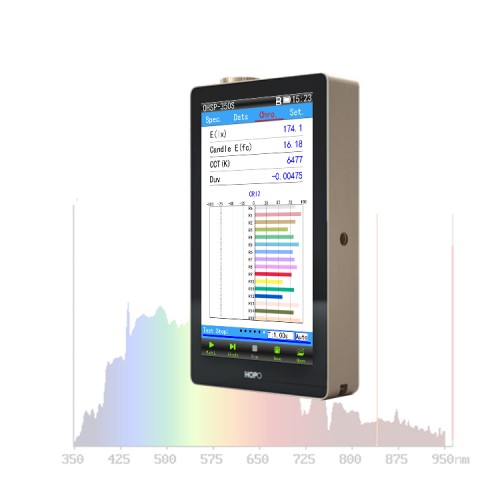

OHSP-350S Spectral Irradiance Spectrometer
  • Product Details

    • To ensure accuracy, each sensor is carefully calibrated under controlled conditions. The sensor integrates silicon photodiodes and customized filters. Typical applications include PPFD / par measurement of plant canopy in outdoor environment, greenhouse and growing room. The measurement results can be viewed on OLED display.

      一、HPL200P Parameters of plant photosynthetic photon flux densitometer

      Name

      Specifications

      Name

      Specifications

      PPFD Measurement Range

      0.01-4000umol/cm2/s

      Cosine Correction Accuracy

      <4%(Class 1)

      Operate Temp

      0~35℃

      V(λ) Error

      <6%(Class 1)

      Storage Temp

      -10~40℃

      Dimension

      38*38*44mm

      Power Supply

      Lithium Battery

      Weight(including battery)

      50g

      Material

      ABS Plastic

      Unit

      umol/m2/s



      Technical Indicator

      HPL200PPFD

      Spectral Response

      400-700nm

      Measurement Range

      0.01 - 4000 umol/cm2/s

      Resolution

      0.01 umol/cm2/s

      Energy Measurement Range

      0 - 9999999 mJ/cm2

      Measurement Accuracy

      ±8%

      Sampling Rate

      5 times/ second

      Unit

      umol/cm2/s

      Test Light Hole Diameter

      ￠6 mm

      Probe Size Diameter

      ￠30 mm

      Packing Size

      20*10*8 mm



      二、HPL200P Spectral response curve of plant photosynthetic photon flux densitometer


      Model Selection Table

      Name

      Model

      Function Description

      Unit

      Range

      Wave Range

      Photosynthetic photon flux densitometer

      HPL200P

      Plant photosynthetic photon flux density PPFD and DLA test

      umol/m2/s、 umol/cm2/s

      0.01-4,000 umol/m2/s

      400-700 nm

      HPL210P

      HPL220P

      Photosynthetic effective radiometer

      HPL200PAR

      Par measurement of photosynthetic effective radiation

      uW/cm2、W/m2

      0.1-200,000 uW/cm2

      400-700nm

      HPL210PAR

      HPL220PAR
