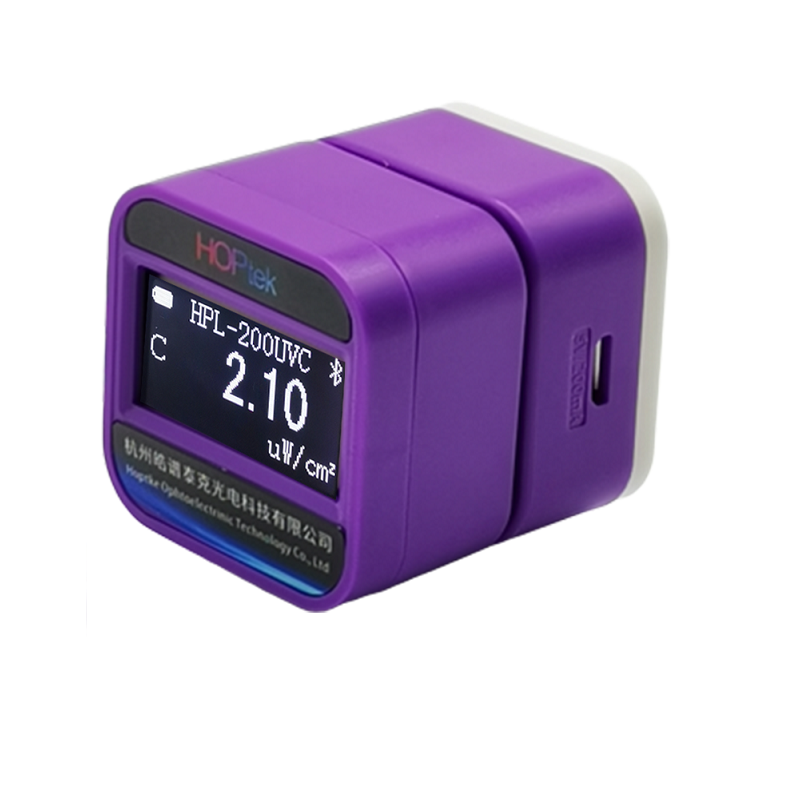

HPL220 UVC Irradiance meter

HPL-220UV Wireless UVC meter

11989 Visit(s)

Hpl-220 series UVC ultraviolet irradiance meter is also called UV intensity meter. Widely used in hospitals, centers for disease control, pharmaceutical factories, food and Drug Administration and other fields of low-pressure mercury lamp ultraviolet intensity measurement.

Excl. VAT: $350

Buy Now Contact

OHSP-350UVS UV Spectrometer (200-450nm)

HPL-220UV UVA meter

Product Details

UVC wave band in ultraviolet has the function of sterilization and disinfection, so it is also called short wave sterilization ultraviolet. The ultraviolet sterilization lamp emits UVC short wave sterilization ultraviolet. The ultraviolet radiation meter of germicidal lamp is used to measure the intensity of UVC light source. It is a portable UV irradiator of UVC germicidal lamp without protective equipment.

一 UVC Parameters of UV radiometer

Model	UVC
Measurement accuracy	±8%
Sampling rate	5 times / second
Test light hole diameter	￠6mm
Probe size diameter	￠30 mm
Size	383822mm
Weight	50g

二 UVC Spectral response curve of UV radiometer

三 Model list

	Model	Application	Unit		Measurement range	Wavelength range
UVC	HPL200UVC	UV Germicidal lamp Intensity and energy test λp =254nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	245-280nm
	HPL210UVC
	HPL220UVC
	HPL200UV0	UVCLED Germicidal lamp Intensity and energy test λp =275nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	200-400nm
	HPL210UV0
	HPL220UV0
	HPL200UV1	UVCLED Germicidal lamp Intensity and energy test，λp =275nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	200-400nm
	HPL210UV1
	HPL220UV1
UVB	HPL200UVB	Medical skin treatment lamp UV Intensity test，λp =311nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	280-315nm
	HPL210UVB
	HPL220UVB
UVA	HPL200UVA	UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm<	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	350-380nm
	HPL210UVA
	HPL220UVA
	HPL200UV2	UV curing, UVALED Intensity and energy test of surface light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV2
	HPL210UV2
	HPL200UV3	UV curing, UVLED Intensity and energy test of point light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV3
	HPL220UV3

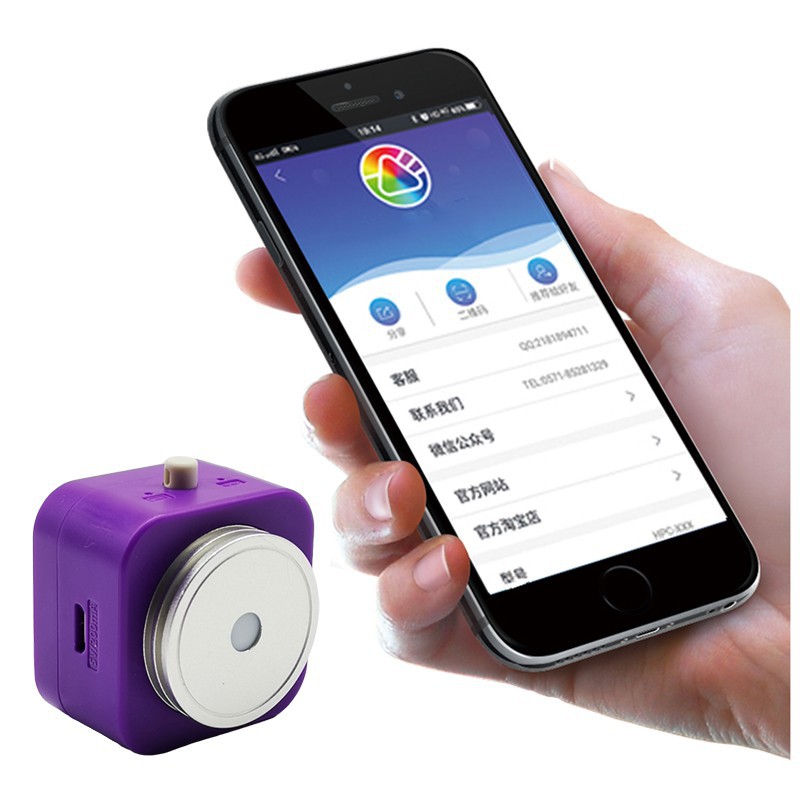

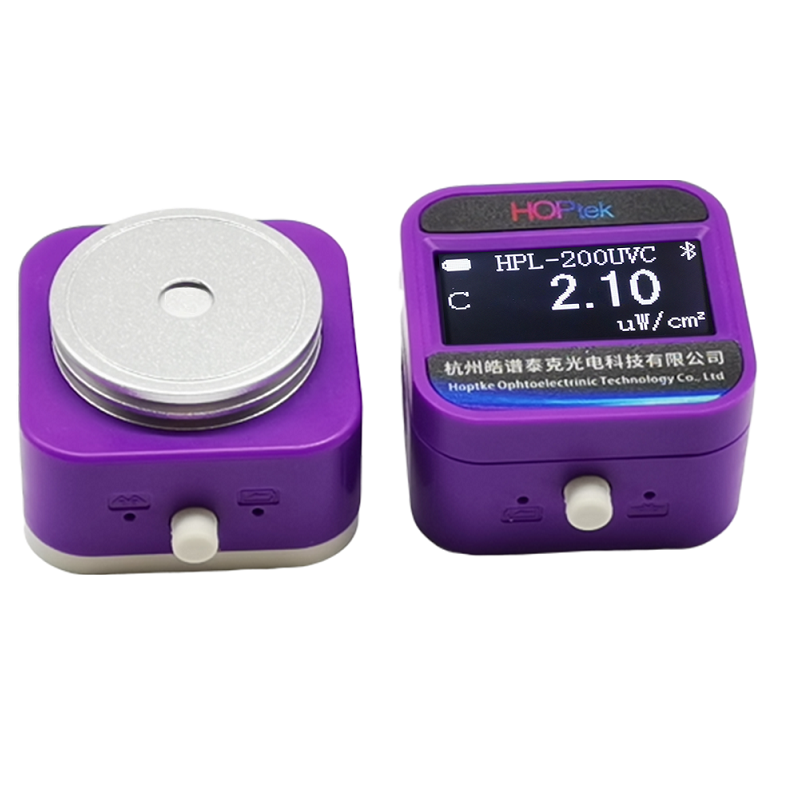

HPL-200 series includes Android mobile app Bluetooth connection； HPL-210 series includes 1.3-inch OLED display, Android mobile app Bluetooth connection; HPL-220series includes separable style main machine，1.3-inch OLED display，Android mobile app Bluetooth connection ;
