OHSP350S spectral irradiance colorimeter , extends wider wavelength to 350-950nm.

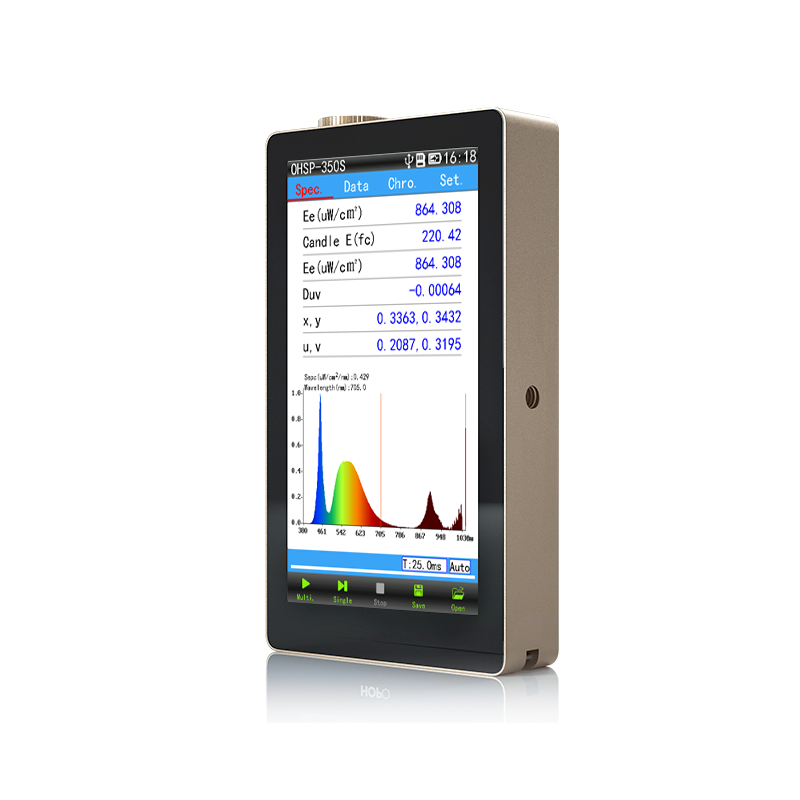

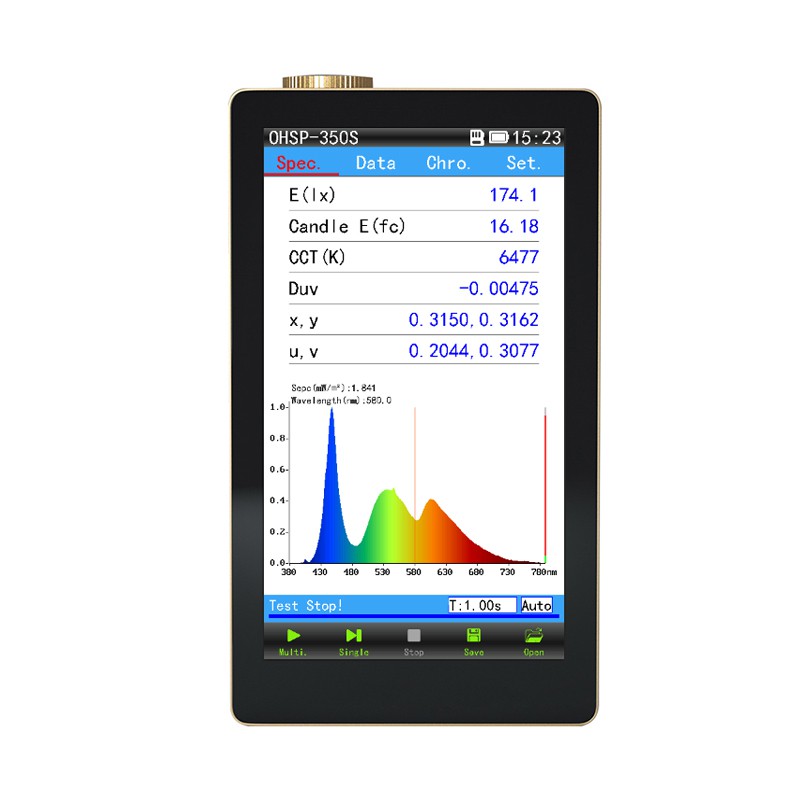

OHSP-350S Portable Spectrometer （350-950nm）
23405 Visit(s)
OHSP350S/SF spectral irradiance colorimeter , extends  wider wavelength to 350-950nm.It has the latest and most authoritative light source color rendering evaluation method TM-30-2015. In addition to measuring conventional lighting sources, it is also suitable for measuring solar radiation spectrum, medical light sources, plant lamps, 365nm ultraviolet light, 850nm infrared LEDs, etc. Wavelength range: 350-950nm

Characteristic:
◎ Long Focus System, 2 nm FWHM
◎Patent Auto-Zero&Compensation Tech. Patent number : 201920164191.3
◎Self-developed Operating System, Integration time 20us-10s
◎High Performance CCD Sensor, 3648 dots
◎Electronic shutter Technology, Fast and stable
◎CNC Machining of Aluminum Alloy
◎Large capacity lithium battery
Excl. VAT: $1600
Contact
HPL200P Wireless PPFD Meter
OHSP350P PLANT LIGHTING SPECTROMETER
  • Product Details

    • 一、Test parameters

      TM-30-2015 Rf TM-30-2015 Rg
      		 Illumination(lx)
      		 CCT(K)
      TLCI-2012 CRI(Ra)
      		Irradiance(W/m2)
      		 Coordinate x,y
      Grow light parameters Peak wave(nm)
      		 Spectral Distribution OHSP350 Other parameters

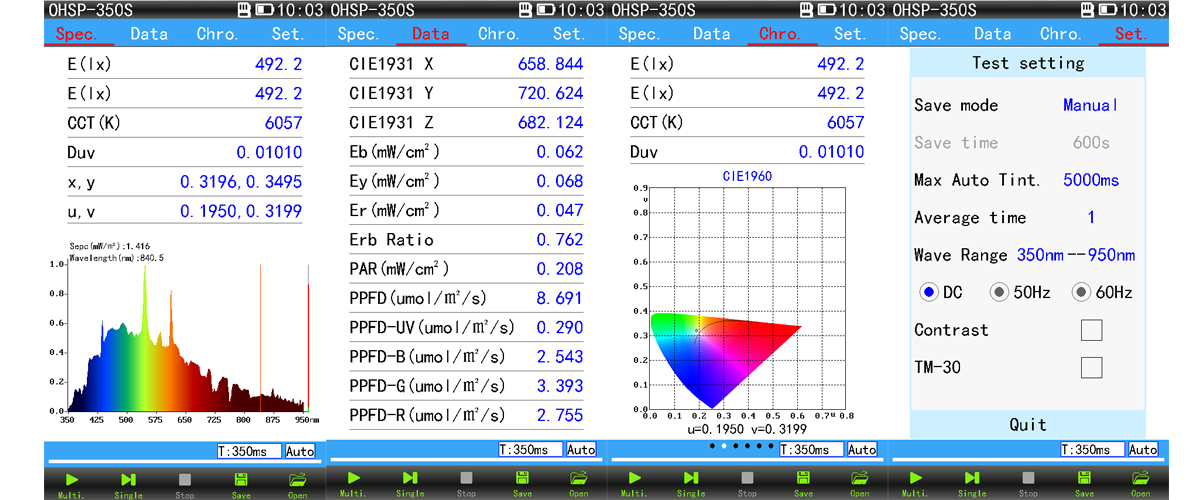

      二、Test Interface



      三、Application

      四、Model

      Model Version Wavelength Range Function Description Link
      OHSP350 Essence 380-780nm Base parameters Details click
      OHSP350A Luminous Flux 380-780nm Need to Match Integrating Sphere Details click
      OHSP350B Blue Light 380-780nm Base+Blue Light Details click
      OHSP350BF Blue Flicker 380-780nm Base+Blue Light+Flicker Parameters Details click
      OHSP350C Economical 380-780nm No software Details click
      OHSP350F Flicker 380-780nm Base+Flicker Details click
      OHSP350FA Flash Lamp 380-780nm Base+Flash Parameters Details click
      OHSP350I Industry 380-780nm I / O control, 485 interface, open software interface Details click
      OHSP350L Luminance 380-780nm Luminance(unit cd/m2)parameters Details click
      OHSP350P Grow Light 350-800nm Base+Grow Light parameters Details click
      OHSP350S Flagship 350-950nm Base+Grow Light parameters +TM-30 Parameters Details click
      OHSP350SF Full Function 350-950nm Base+Plant Light parameters +TM-30 Parameters +Flicker Parameters+Blue Light Details click
      OHSP350UV UV 230-850nm Base+UV Irradiation Parameters Details click
      OHSP350UVS UV Update 200-450nm UVA,UVB,UVC Irradiance, 1nm FWHM Details click
      OHSP350Z Many Function 380-780nm Illuminance, Luminance, Luminous Flux, Intensity Details click
