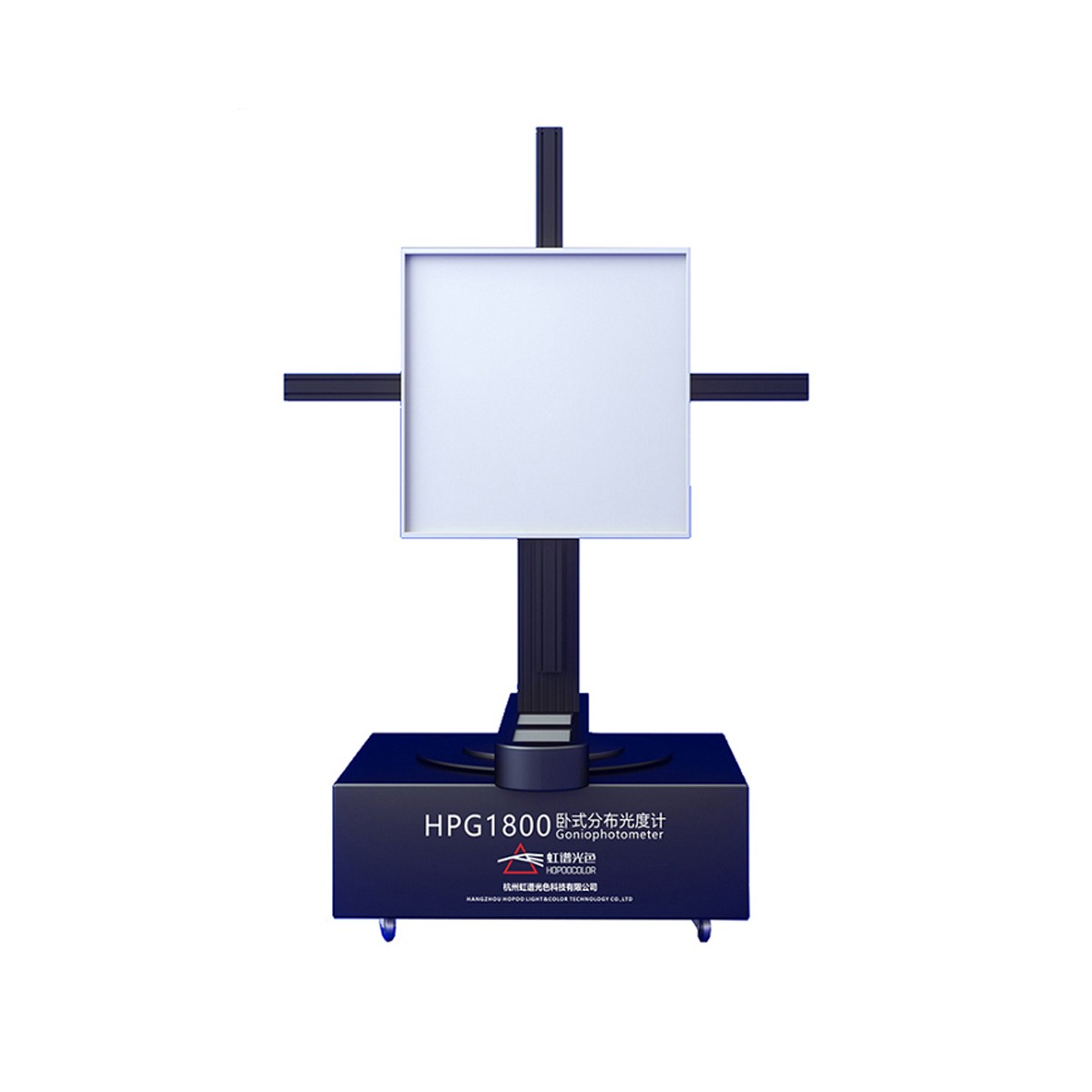

HPG1800P Goniophotometer (PPF Function)

According to the requirements of CIE, IESNA and national standards, we have achieved testing methods as B-(B、A-a and C-y through rotating lamps. It is used to test the spatial light intensity distribution as well as variety luminosity parameter of indoor spotlight, cast light lamp and street light. Plus PPF for grow light testing functions.

Main reference standards:
LM-79-2008 Electrical and photometric measurement certification methods for solid-state lighting products;
GB/T9468-2008 General requirements for light distribution measurement of lamps;
LB/T 001-2008 Integral LED street lamp measurement method;
GB/T 24824-2009 LED module measurement method for general lighting;
GB/T7002-2008 Photometric test of floodlight lighting;
CIE 69 Methods of Characterizing Illuminance Meters and Luminance Meters;
CIE 70-1987 The measurement of absolute luminous intensity distributions;
CIE 121-1996 The photometry of goniophotometer of luminaries;
CIE 84 Measurement of luminous flux;
IESNA LM-75 Goniophotometer Types and Photometric Coordinates;

Technical support features:
The main shaft and lamp shaft adopt the conductive slip ring with precious metal optical fiber point brush structure, which can run 360 degrees continuously without backlash for measurement. There is no need to rotate back and forth to prevent winding, and never winding;
Adopt a well-known brand of high-speed, high-torque, low-noise, low-vibration three-phase hybrid stepping motor;
It has a laser sight to make the center of the lamp under test coincide with the center of rotation of the rotating table;
Vertical axis rotation range: -180°～180° or 0°～360° rotation;
Horizontal axis rotation range: -180°～180° or 0°～360° rotation;
Angle accuracy: 0.1 degree, resolution: 0.01 degree;
The maximum size of the lamp: 1.2×0.6 meters;
The maximum weight of the lamp: 30kg (including fixture);
The lamp power supply measurement adopts a 4-wire system: 2 circuits of 10A conductive slip rings are used for power supply, and 2 circuits of 2A are used for voltage measurement;
Length of turntable control line and lamp power supply line: 6 meters, can be lengthened for special requirements;

Photometric parameters:
1. High-precision constant temperature probe (constant temperature point 35 ± 1 degree, constant temperature accuracy ± 0.1 degree);
2. V(λ) correction accuracy: CIE standard level (f1' <0.03);
3. Illumination measurement range: 0.001 lx to 200 klx, 5 automatic ranges;
4. Maximum test distance: 2 meters to 30 meters;
5. Highly stable probe holder with light-shielding grating, high bottom adjustable, up and down and left and right inclination angles adjustable;
6. Length of photometric probe connecting wire: 20 meters (can be lengthened for special requirements);
