HPL210B Blue light irradiance meter

HPL220B Blue light irradiance meter
4317 Visit(s)

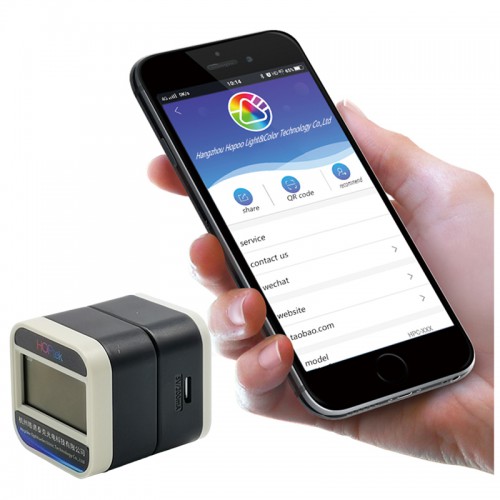

HPL220B blue light irradiator is suitable for measuring blue light irradiance in neonatal hyperbilirubinemia. HPL210B blue light irradiator is characterized by digital display, compact and portable, convenient operation, high accuracy and stability. Bluetooth connection
Excl. VAT: $200
Contact
HPL200LP Laser power meter
  • Product Details

    • Infrared power meter is a wide spectrum infrared power meter, which is mainly used to measure the power density of infrared radiation, that is, the radiation power per unit area. Easy to use, accurate measurement and reliable quality!

      Application area

      Measurement of radiation intensity of infrared sources such as sunlight, infrared lamp and infrared remote control.

      Optics and laboratories, meteorology and agricultural production.

      Technical Indicator

      HPL210IR

      Spectral response

      600nm-700nm λp = 650nm

      Power measurement range

      1uW/c㎡--1000W/㎡

      Power Resolution

      0.1 μW /cm2

      Probe size diameter

      φ30mm

      Measurement accuracy

      ±5 %

      Sampling rate

      5 times / second

      Unit

      μW/cm2

      Test light hole diameter

      ￠6 mm

      Probe size diameter

      ￠30 mm

      Packing size

      20*10*8mm



      Model

      Unit

      Wave range

      Application

      HPL220IR

      uW/m2

      650nm，600-700nm

      It is suitable for sunlight monitoring, infrared remote control detection, infrared lamp measurement, exposure machine measurement, laboratory equipment and medical equipment detection, etc

      HPL220IR

      uW/m2

      850nm，800-900nm

      It is suitable for sunlight monitoring, infrared remote control detection, infrared lamp measurement, exposure machine measurement, laboratory equipment and medical equipment detection, etc

      HPL220IR

      uW/m2

      940nm，900-1000nm

      It is suitable for sunlight monitoring, infrared remote control detection, infrared lamp measurement, exposure machine measurement, laboratory equipment and medical equipment detection, etc
